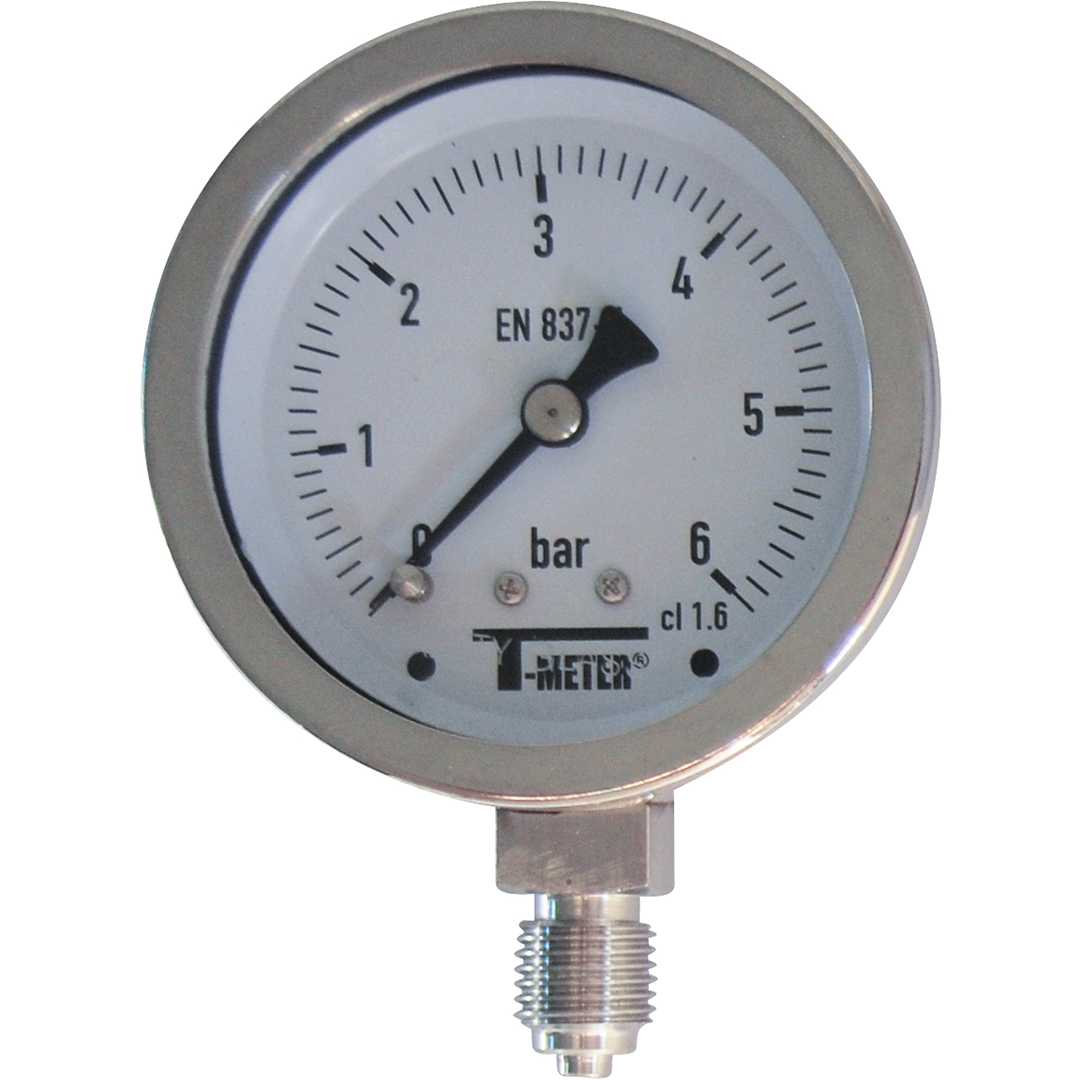

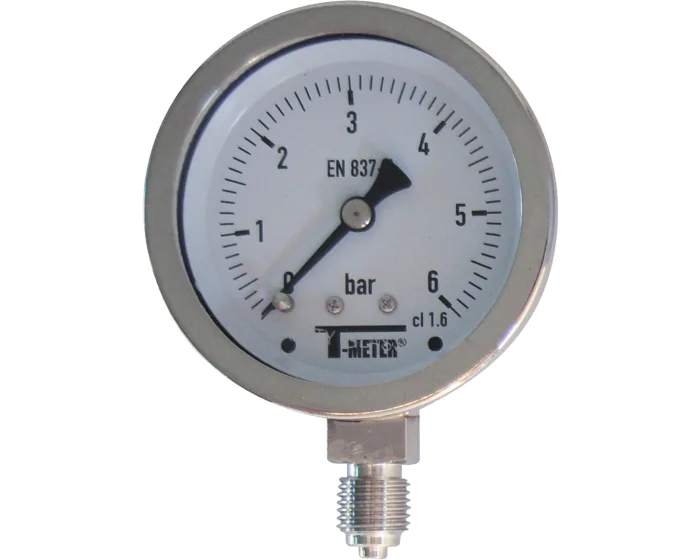

Syveco offers the 1616 pressure gauge with stainless steel mechanism, dry fillable dial, safety glass, IP65 protection, class 1.6, for chemical, petrochemical, mining, technical installations
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Construction standard | EN 837-1 |
| Brand | T-METER |
| Pressure range | -1 / 1 Bar |
| Application | Industry |
| Dial diameter (mm) | 63 |
| Fluid | Cold water |
| Protection index (IP) | IP 65 |
| Housing material | Stainless steel |
| Connections | BSP M |
| TS max (°C) | 100 |
| TS min (°C) | 0 |
| Pressure gauge type | Dry dial pressure gauge |
| Warranty period | 2 years |
| Pressure gauge connection | Radial |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP M -1 / 1 Bar | 1616001 | S1013791 |
€14.83
(excl. btw)
|
add to cart |
| BSP M 0 / 1.6 Bar | 1616002 | S1013792 |
€14.83
(excl. btw)
|
add to cart |
| BSP M 0 / 2.5 Bar | 1616003 | S1013793 |
€14.83
(excl. btw)
|
add to cart |
| BSP M 0 / 4 Bar | 1616004 | S1013794 |
€14.83
(excl. btw)
|
add to cart |
| BSP M 0 / 6 Bar | 1616005 | S1013795 |
€14.83
(excl. btw)
|
add to cart |
| BSP M 0 / 10 Bar | 1616006 | S1013796 |
€14.83
(excl. btw)
|
add to cart |
| BSP M 0 / 16 Bar | 1616007 | S1013797 |
€14.83
(excl. btw)
|
add to cart |
| BSP M 0 / 25 Bar | 1616008 | S1013798 |
€14.83
(excl. btw)
|
add to cart |
| BSP M 0 / 40 Bar | 1616009 | S1013799 |
€14.83
(excl. btw)
|
add to cart |
| BSP M 0 / 60 Bar | 1616010 | S1013800 |
€14.83
(excl. btw)
|
add to cart |
